ROCK CONCERT STAGE DESIGN CHALLENGE - 2001
FINAL DESIGNS
PROVING TESTS & DESTRUCTIVE TESTS
 |
 |
 |

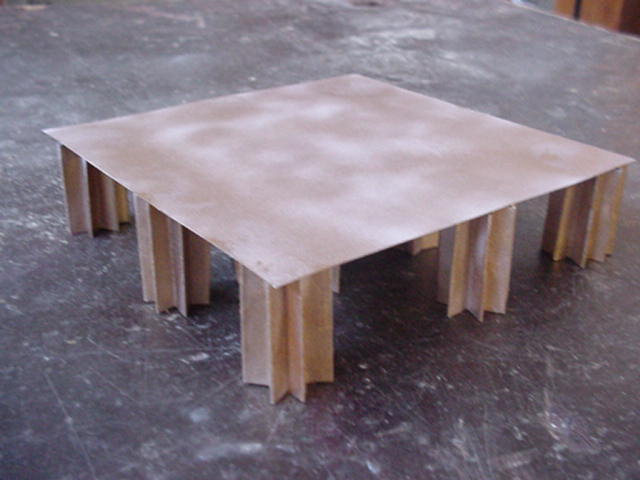

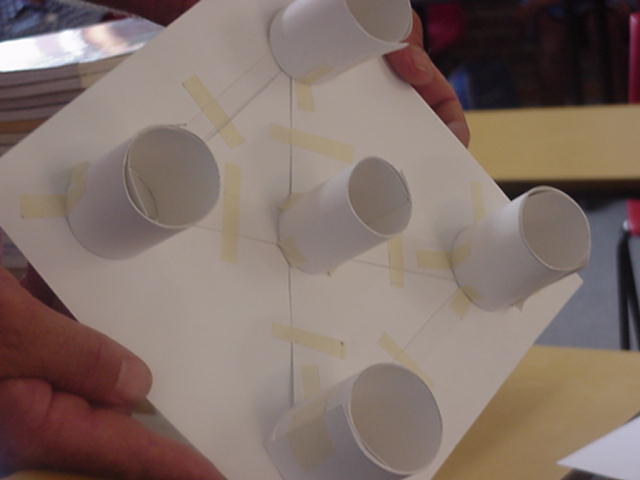

| Columns strengthened by corrugated effect. | Bending sheet material increases its rigidity and strength. | Cylindrical columns with high diameter : length ratio are strong. |
 |
 |
 |

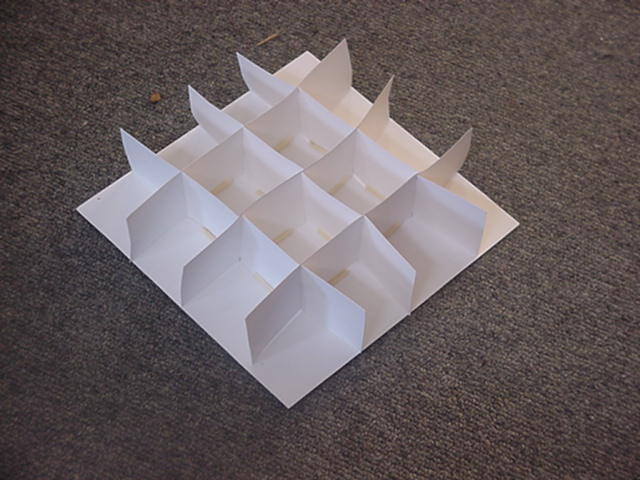

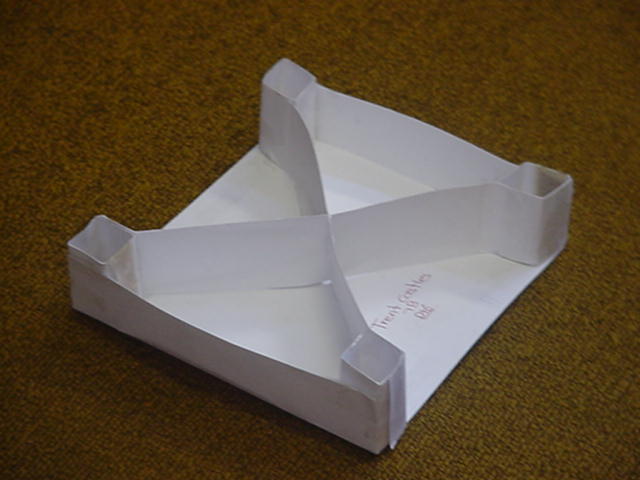

| Box crating effect idea observed from the underside of plastic carry-boxes. | The idea of cross bracing tried out |

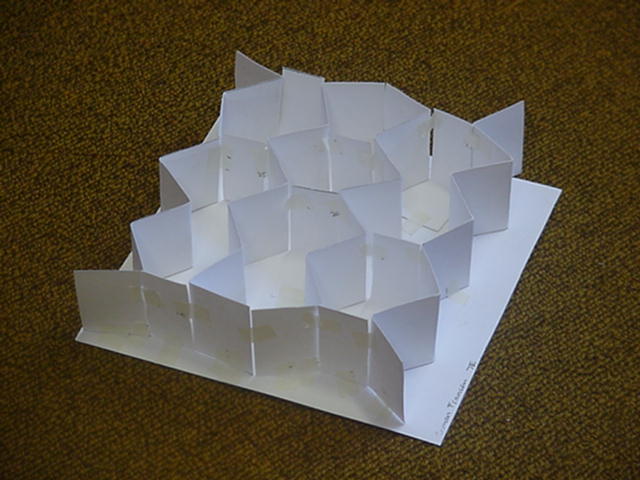

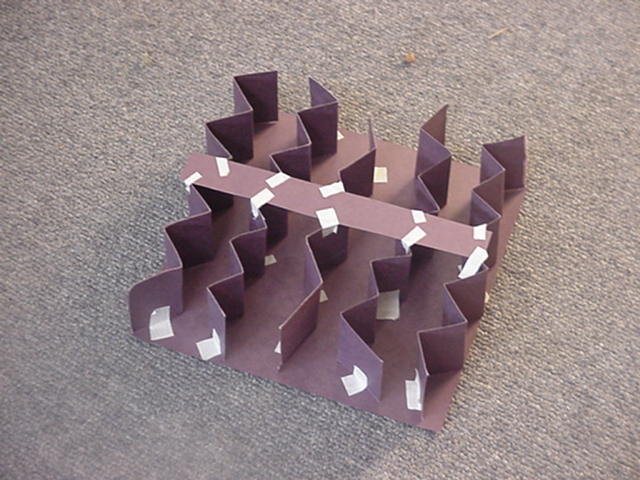

Concertina/ZigZag support. |
 |
 |
 |

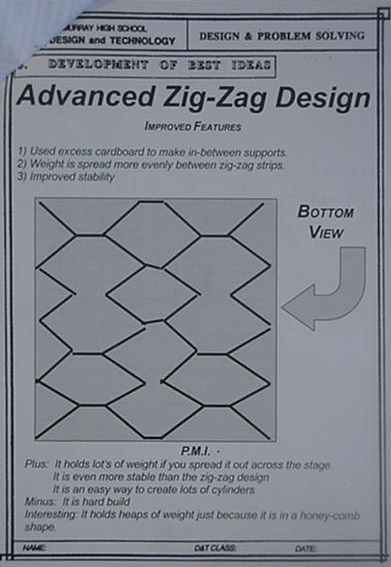

| Design folio - ideas development |

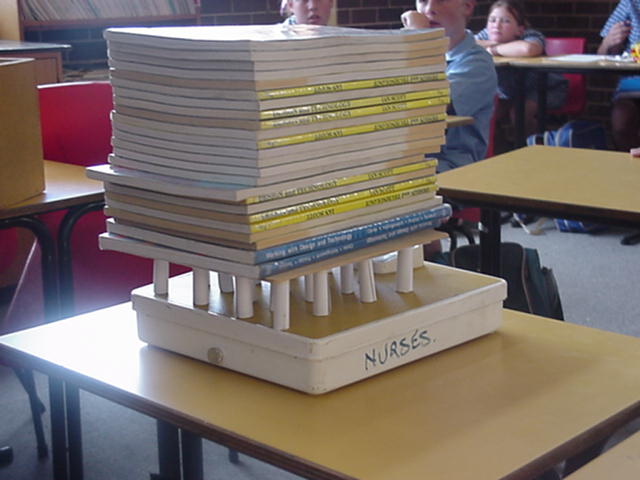

5 kg Proving Test |

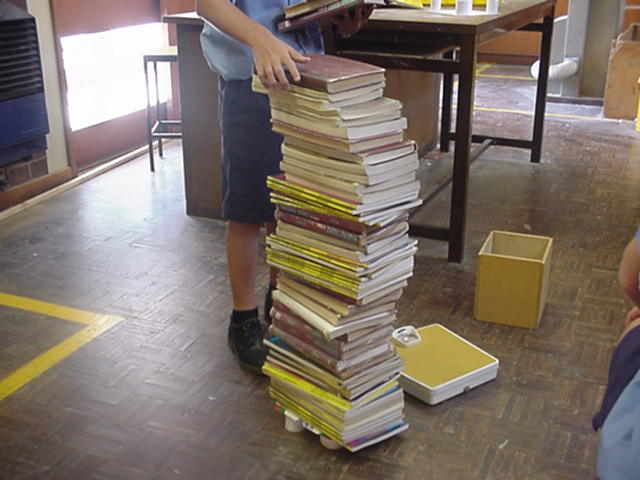

Model being loaded until failure point is reached. |
